MTC-1 Micro Temperature Controller

  • MTC-1 Micro Temperature Controller in Micro Temperature Controller

Product Features

Related Accessories


Price: $525
Download Assets related to this product: Manual PDF : DataSheet


Accuracy ±1°C
Resolution ±0.1°C
Range Ambient to 99.9°C
Dual Setpoint Protection Feature
Dimensions 5.5''L x 2''W x 1''D
Weight 1lb. including power supply


Max AC Power Output with resistive load 90 Watts
DC Output Rating min 6V max 24V DC, 4 Amps
AC ground leakage current less than 1 milliamp at 110V AC
Power Supply 110V - 230V AC input, 12V DC output at 4 Amps



Readout 0.5'' Backlit LCD

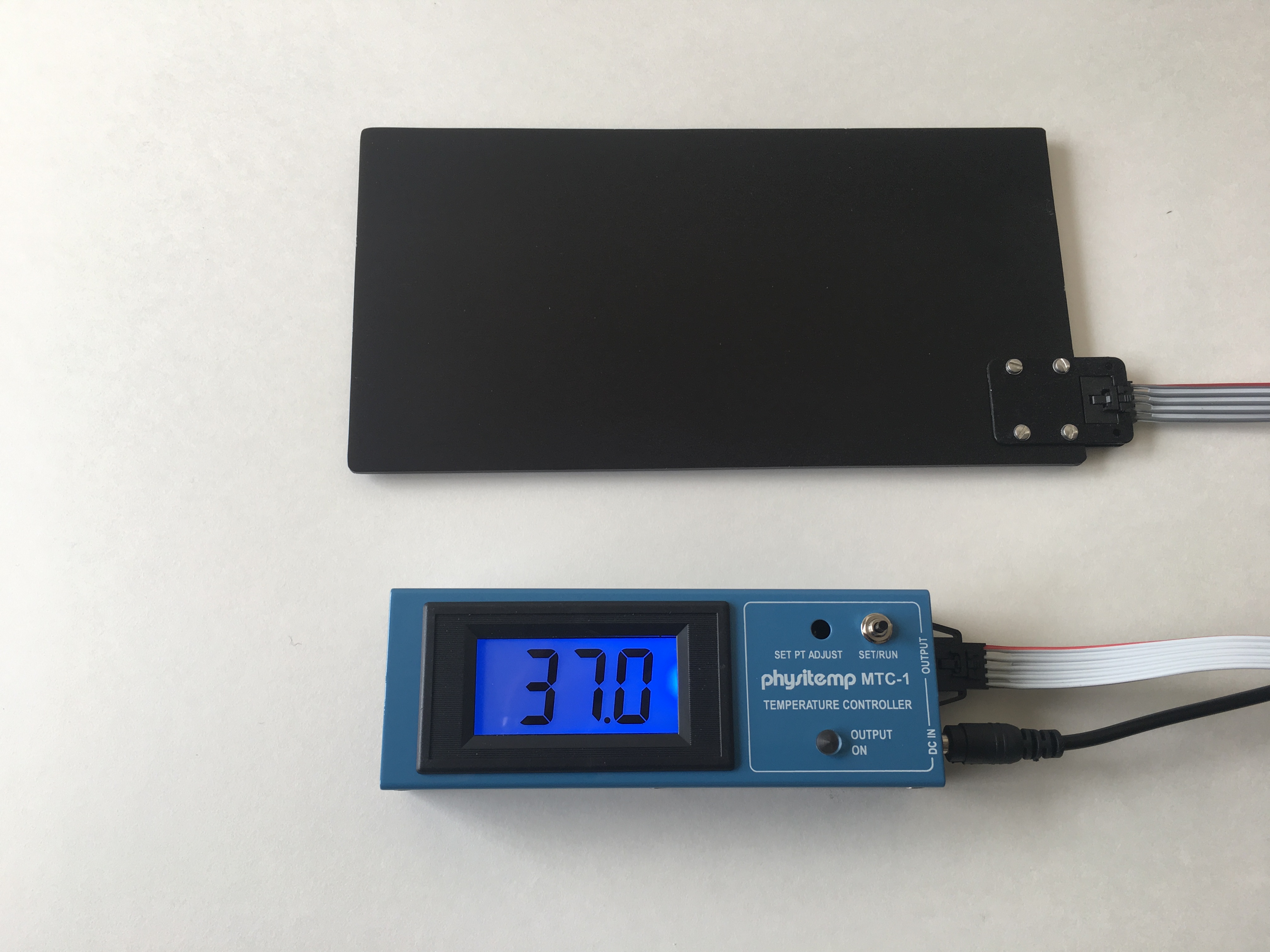

Recent interest in a simple low cost temperature controller to maintain small and medium sized objects at physiological temperatures was the reasoning behind the reasoning behind the development of the Physitemp MTC-1 microtemperature controller. Utilizing a precision highly stable platinum RTD as the feedback sensor, this inexpensive controller will display and maintain a set temperature within ±0.1° Centigrade. The controller is designed to operate from a 12VDC supply and can control an output current up to 4 Amperes (50 Watts). It can also be used with an input voltage between 6 and 24VDC for both lower and higher power applications (up to 90 Watts). A 1/2 inch backlit LCD readout provides continuous display of temperature with 0.1 degree resolution. The set point is easily adjusted from just above room temperature up to 99.9°C via a 20 turn potentiometer. A momentary switch allows the user to toggle the display between the set and run temperatures. The controller is ideal for maintaining the temperature of 60cc perfusion syringes and small heated surfaces, both available as an option. Its compact size (5 1/2” long x 2” wide x 1” deep) makes it ideal where space is at a premium. For specific applications please contact our Engineering Department at 1-800-452-8510 for assistance.
