HE-1 Heat Exchanger

Product Features

Price: $650

Download Assets related to this product: Manual PDF : DataSheet : Sterilization Protocol

Specifications

Dimensions 4.5''W x 8.25''L x 8.75''H
Weight
Lead Length N/A

Power

Power AC operating Voltage Range 110-230VAC

Input/Output

Not Applicable

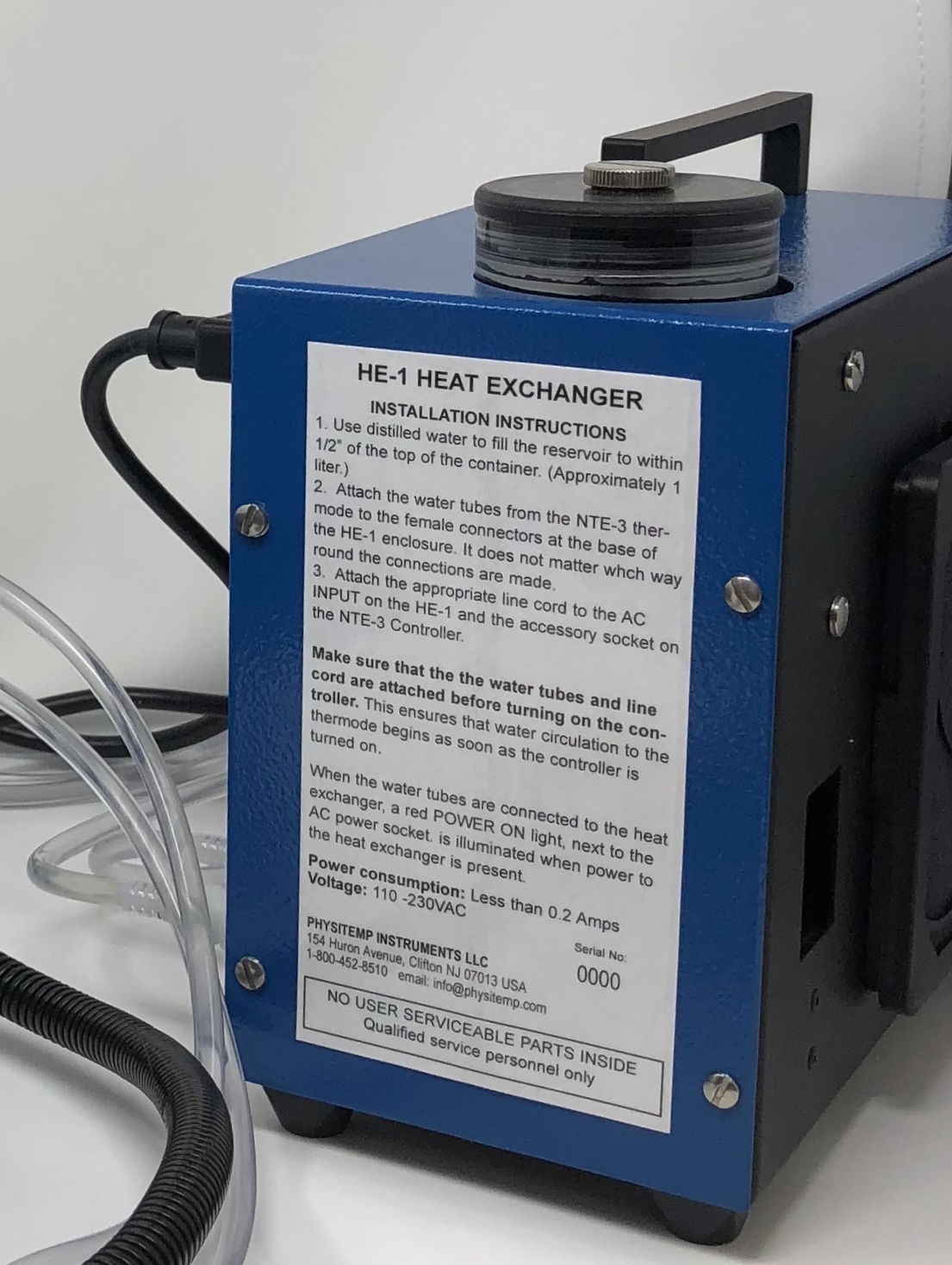

Model HE-1 Heat Exchanger - In order to reduce the size, weight, and volume of our self-contained Pump and Tank Unit, PTU-3, Physitemp Instruments has developed a compact and lightweight active heat exchanger Model HE-1 as a replacement. A built-in compact fan and radiator effectively cool any of our smaller thermoelectric stages such as the TS-4, BFS-3MP, and BFS-5MP as well as our quantitative sensory device, the NTE-3. Less than 1 liter of circulating water is required when running. Both the fan and circulating pump are practically silent in operation and self-sealing water fittings are used to prevent water spillage and leaks.

AC power is required to operate the HE-1. A switched accessory outlet on the rear of all thermoelectric controllers is used to power the pump so water starts flowing immediately when the controller is turned on.

designed for use with Physitemp's range of thermoelectric cooling and heating stages. It provides a convenient reservoir of cooling water when a stage is operated in the cooling mode for an extended period of time in a location that has no source of tap water nearby to cool the hot side of the thermoelectric heat pump. The reservoir tank holds seven gallons of water, which is will adequately run the TS-4 series Thermal Microscope Stage for up to eight hours.
