MT-26/4HT Needle Microprobe

Product Features

  • Pencil Point Sharpened Tip
  • Fast Response Time
  • Accuracy of ±0.1°C
  • Ideal for Subcutaneous Applications

Related Accessories



Price: $185

Download Assets related to this product: Manual PDF : DataSheet : Sterilization Protocol

Specifications

Sensor Tip Diameter 26 ga. (.018'')
Accuracy ±0.1°C in the physiological range
Time Constant: 0.1 seconds
Maximum Temperature: 200°C
Minimum Temperature -50°C
Lead Length 5 feet
Sterilization Protocol Autoclaveable, Gas ETO, Gluteraldehyde, Isoprophyl Alcohol

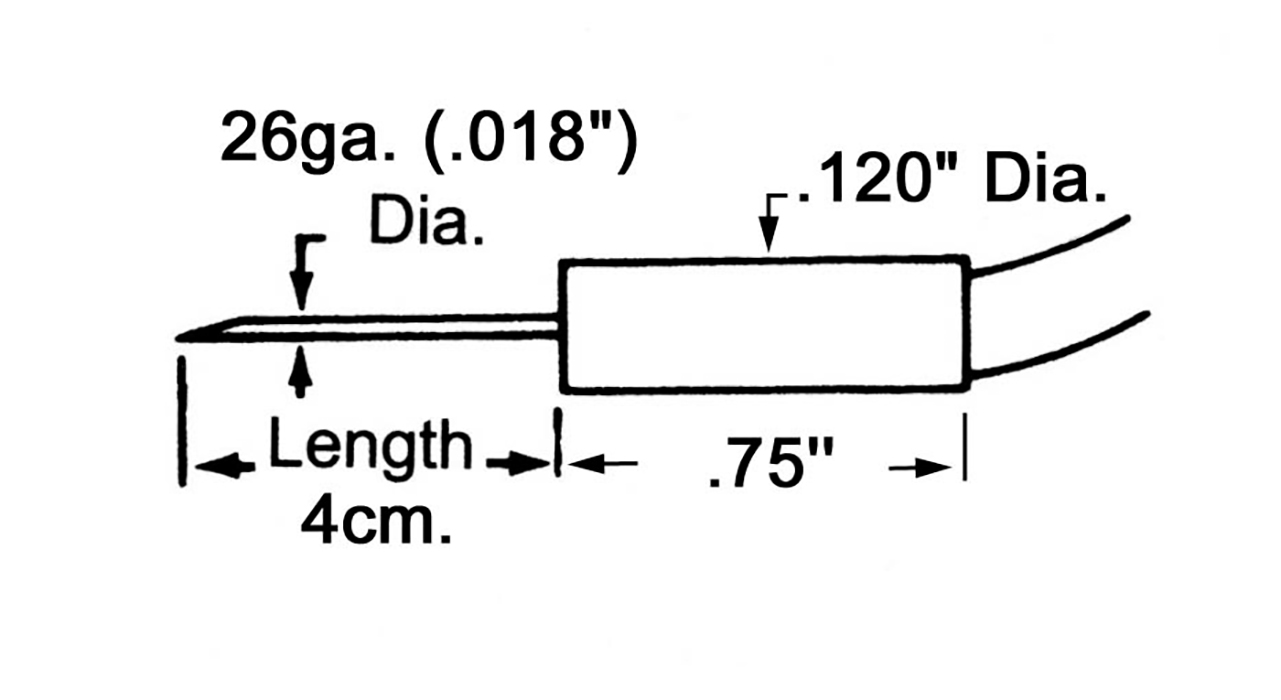

26 Gauge Needle Microprobe

Fast-response 26 gauge needle probe, (needle length is 4 cm) for instant readings in tissue, semisolids, liquids. Also for very small specimens, powders and materials. Needle tip is sealed to ensure only stainless steel contacts specimen. Max. temp. 200°C. 5 ft. lead. Smallest microprobes give fastest reading. Short probes are easier to insert and last longer. Type #'s indicate needle gauge and needle length in cm.

Sizes Available (ga/cm.):

MT-29/1, MT-29/2, MT-29/3, MT-29/5

MT-26/2, MT-26/4, MT-26/6

MT-23/3, MT-23/5, MT-23/8

MT-4 - Similar to MT-29/1 but has blunt tip. Good for instant skin and surface temperatures, liquids. Time constant .025 secs. Not isolated.

ICT-4 - For use on integrated circuits and other micro specimens. 0.013" dia. straight stainless steel shaft; slightly protruding sensor bead to facilitate temperature probing. 5" tubular handle fits micro- manipulators. Max. Intermittent Temp. 200°C, continuous use 100°C, Time constant 0.25 secs. 5 ft. lead. Not Isolated.

All needle probes are non-isolated. Isolated versions of 23 ga. and larger needles are available for special order.

HT version of Probe is Autoclavable.

Time Constant is defined as the time required to reach 63% of final temperature in liquid. An accurate reading is obtained when the reading stops changing, typically 5-10 time constants.

Maximum Temperature refers to intermittent use of probe. When probe is used for continuous measurements, maximum temperature should be reduced by 25% unless specified.
