IT-14 Flexible Implantable Microprobe

Product Features

  • [aAssocContent]

Related Accessories


Price: $133
Dowload Assets related to this product: Manual PDF : DataSheet : Sterilization Protocol


Sensor Tip Diameter .050
Accuracy ±0.1°C in the physiological range
Time Constant: 0.3 secs.
Maximum Temperature 150°C
Minimum Temperature -100°C
Lead Length 3 ft.
Sterilization Protocol Autoclavable, ETO gas, Isoprophyl Alcohol and Gluteraldehyde solution

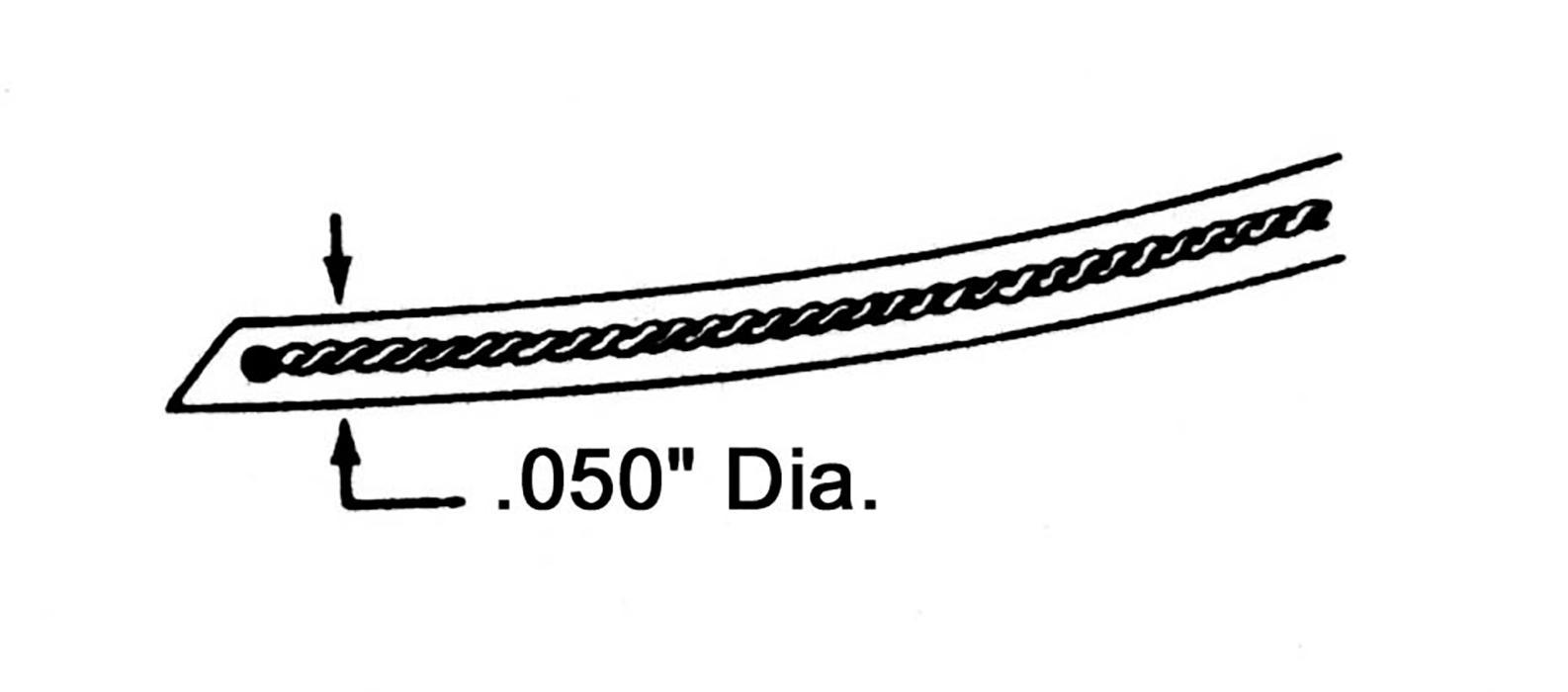

IT-14 Flexible Implantable Microprobe - Implantable in semi-solids and tissue with 14 gauge needle (supplied). Also for immersion in various solutions. Totally sheathed in chemical resistant Teflon™. Quited rugged. Maximum Temperature 150°C . Isolated. Probe diameter .050" (14 gauge represents the needle gauge that the probe can be inserted through). Time constant 0.3 seconds.

Time Constant is defined as the time required to reach 63% of final temperature in liquid. An accurate reading is obtained when the reading stops changing, typically 5-10 time constants.

Maximum Temperature refers to intermittent use of probe. When probe is used for continuous measurements, maximum temperature should be reduced by 25% unless specified.
