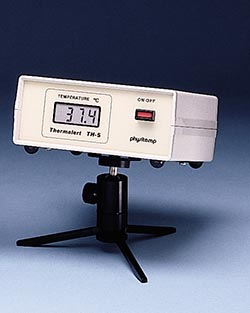

TH-5/AOP Thermalert Clinical Monitoring Thermometer with Analog Output

Product Features

  • Safe Battery Operation
  • High Stability
  • Ideal for Laboratory or Hospital use
  • Precise, yet economical

Related Accessories


Price: $725
Download Assets related to this product: Manual PDF : DataSheet


Temperature Range 25° to 45°C
Accuracy 0.1°C ± 1 digit
Ambient Operating Range 15-45°C
Calibration Conformity Conforms to NIST tables - (monograph 175)
Sensors Type T Thermocouple


Batteries Four ''C'' cells
Battery Life 1200 hours continuous
Power Supply Battery operated
Dimensions 6''W x 2.5''H x 6.25''D
Weight 2.5 lbs



Inputs 1
Input Socket Type T
Analog Output Approx. 10mV per degree C
Readout 0.5'' high LCD


The TH-5?AOP is one of our most economical precision thermometers in the Physitemp product line. The TH-5/AOP offers the same high accuracy (0.1°C ±1 digit) and resolution as all our other thermometers, but with a narrow temperature range.

The TH-5 is ideally suited for either a laboratory or hospital setting where continuous temperature readings within the physiological range are sufficient.

THe TH-5/AOP has a temperature range of 25-45°C with a single probe input. For lab applications where recording is needed, the TH-5/AOP is supplied with analog output.

(Stand not included, see accessory - TTS-4 Tilt Stand)

The instrument is easy to use - just connect the sensor and switch on. For safety, the TH-5 is battery operated. Battery life is approximately 1200 continuous hours. The digital display reads to 0.1°C with 0.1° accuracy ±1 digit. Physitemp offers a complete line of Type T Thermocouple probes, which are all interchangeable for use with the TH-5 Thermometer. No probe calibration necessary.
